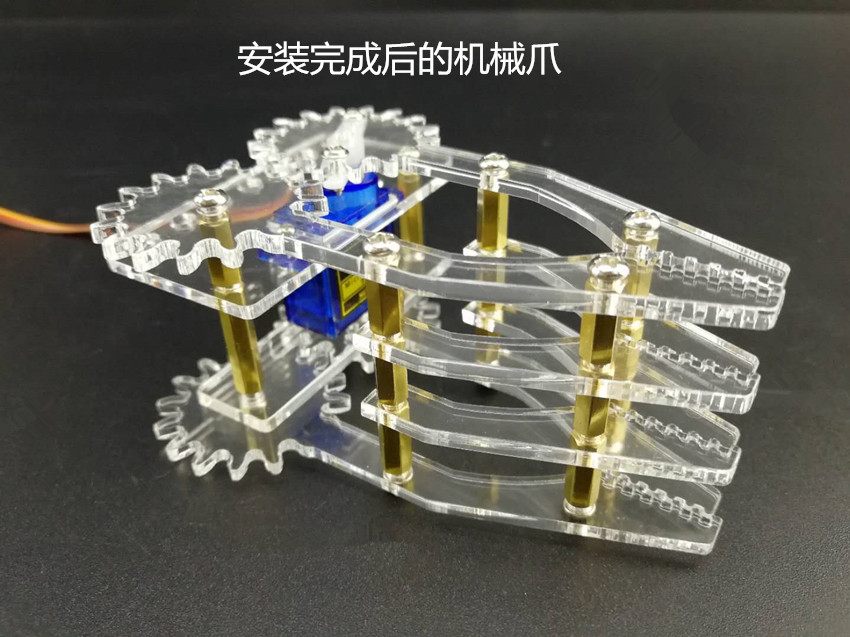

SNM200亚克力爪教程

All parts

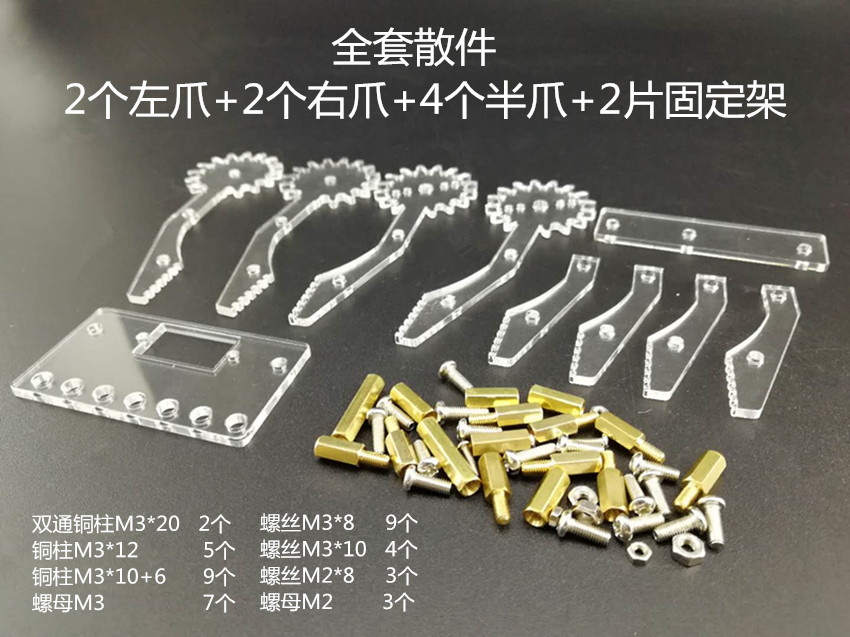

2 left claw +2 right claw +4 half claw +2 plate fixer
双通铜柱 Double copper column
铜柱 copper pillar
螺母 Nut
螺丝 Screw

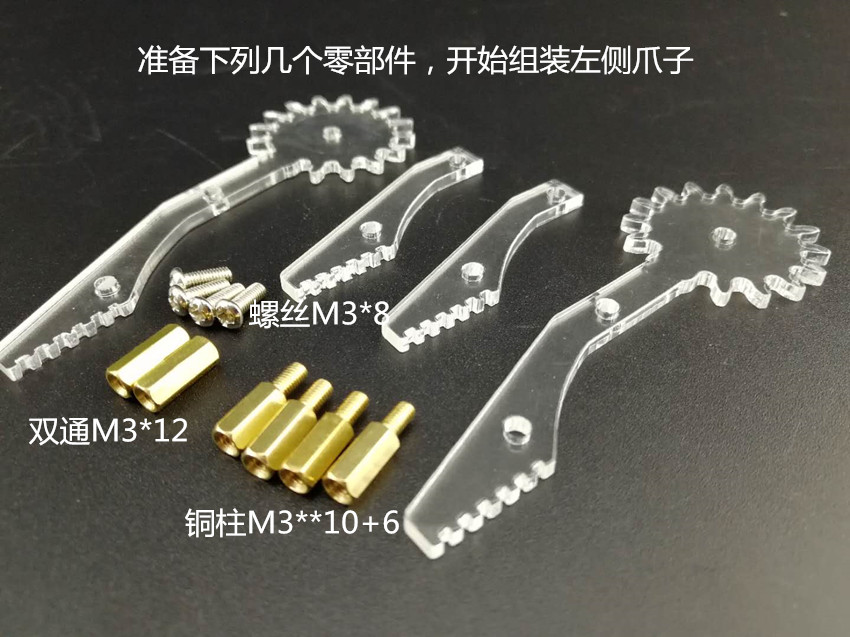

Prepare several parts of the picture and start assembling the left paw.
铜柱M3*12 copper pillar M3*12
双通M3*10+6 Double copper column M3*10+6
螺丝M3*8 Screw M3*8

双通铜柱M3*12 Double copper column M3*12
螺丝M3*8 Screw M3*8

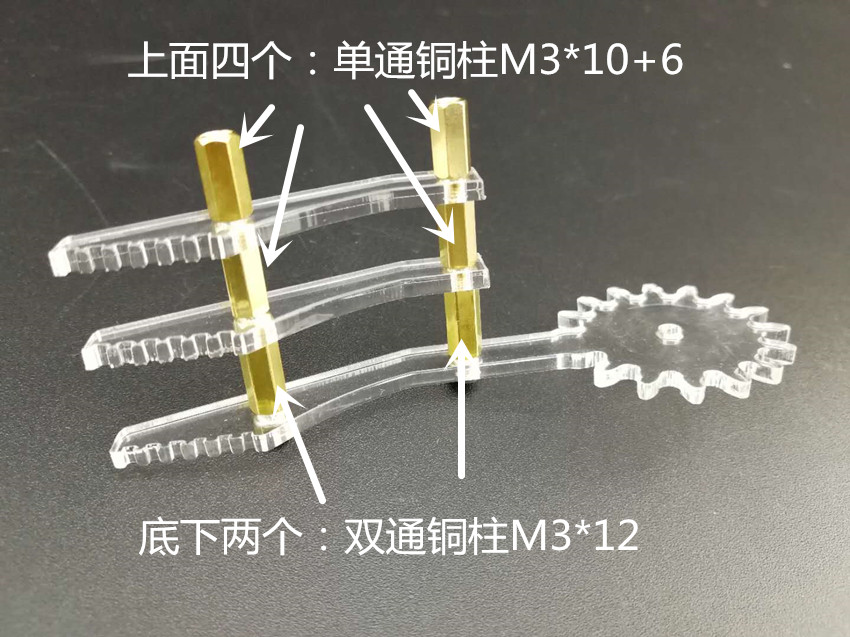

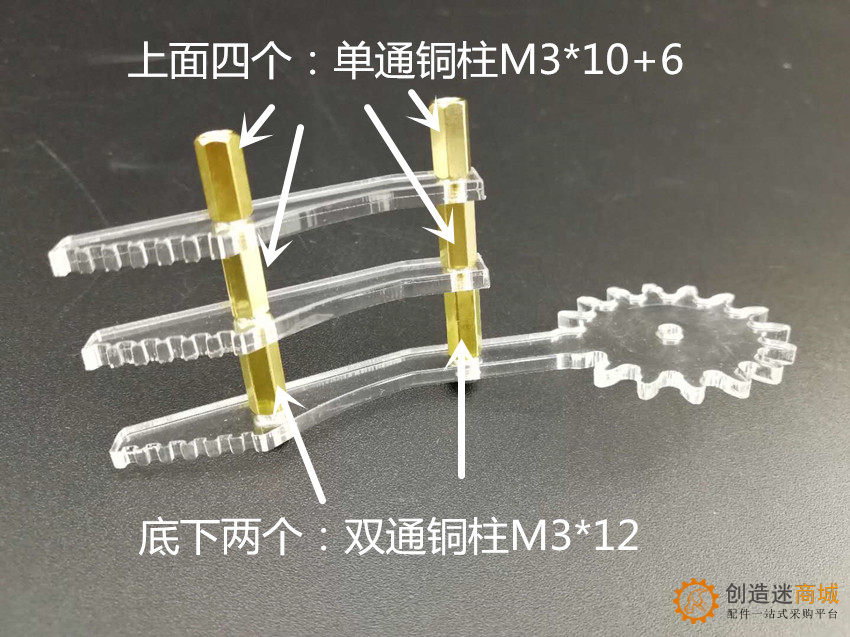

The top four: single copper column M3*10+6
The bottom two: double copper column M3*12

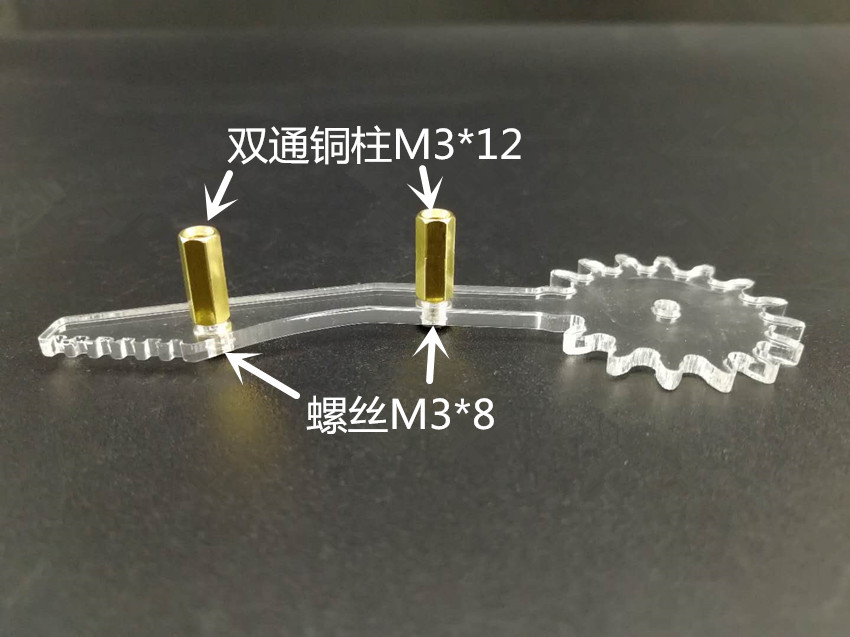

Use M3*8 screws to fix.

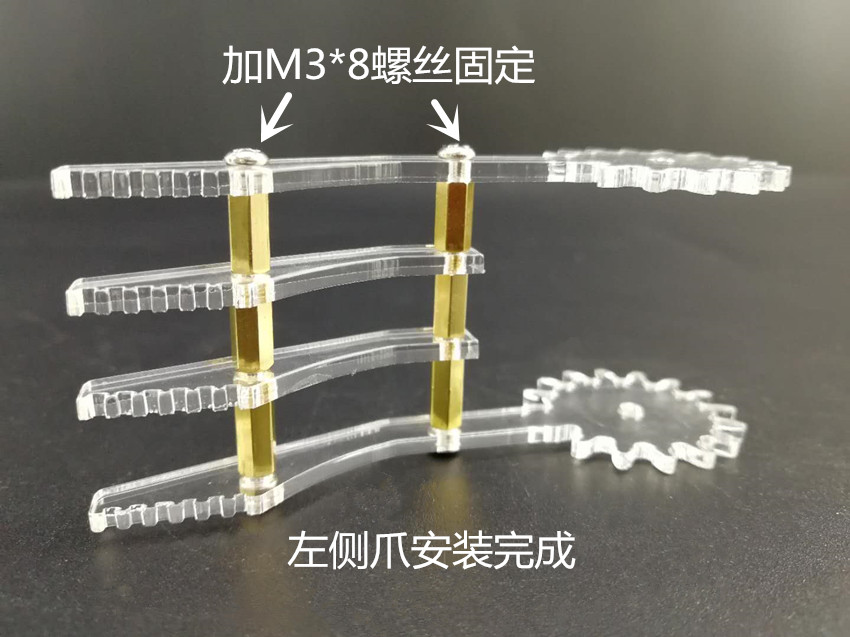

Left claw completion.

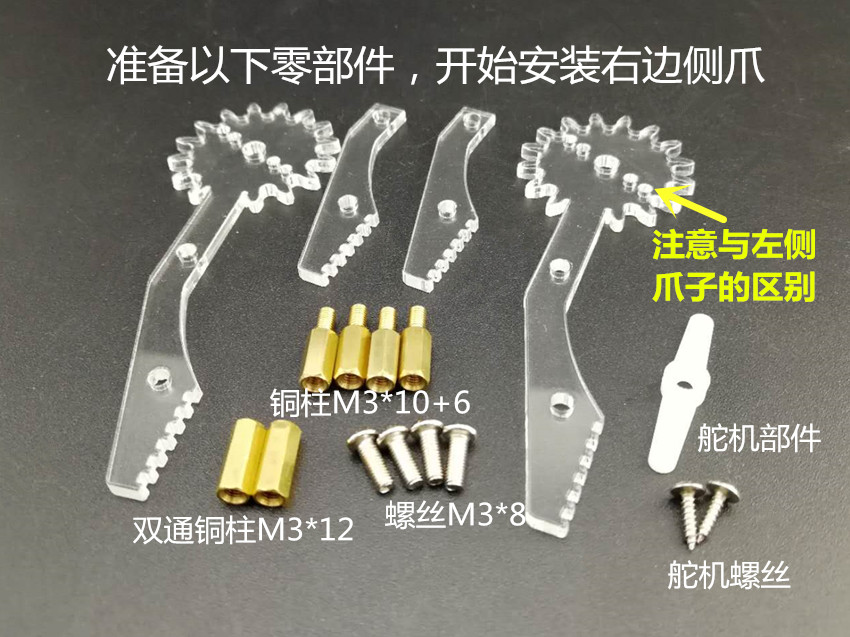

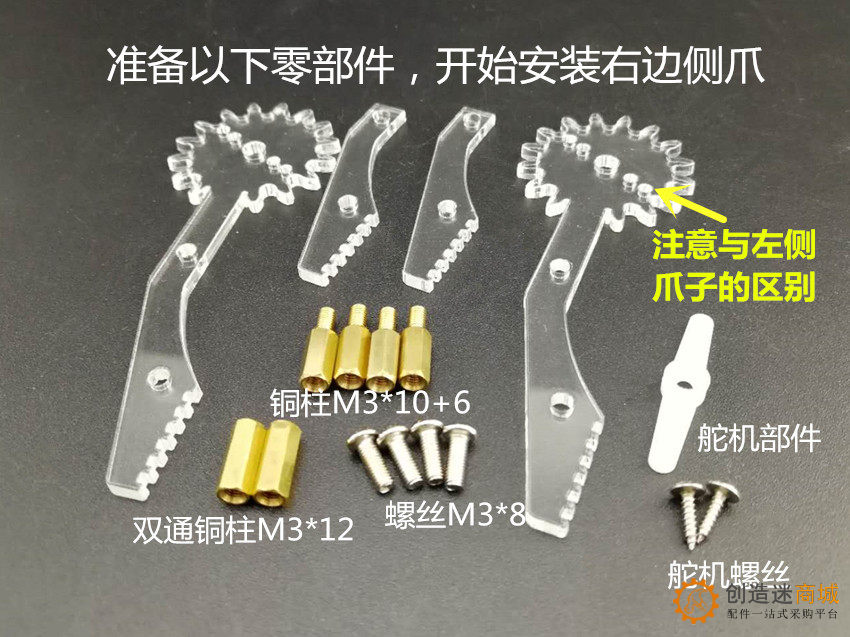

Prepare the parts and start to install the right side claw.
Pay attention to the difference from the left paw.
铜柱M3*10+6 Copper column M3*10+6
双通铜柱M3*12 Double copper column M3*12
螺丝M3*8 Screw M3*8
舵机部件 steering engine parts
舵机螺丝 steering engine screw

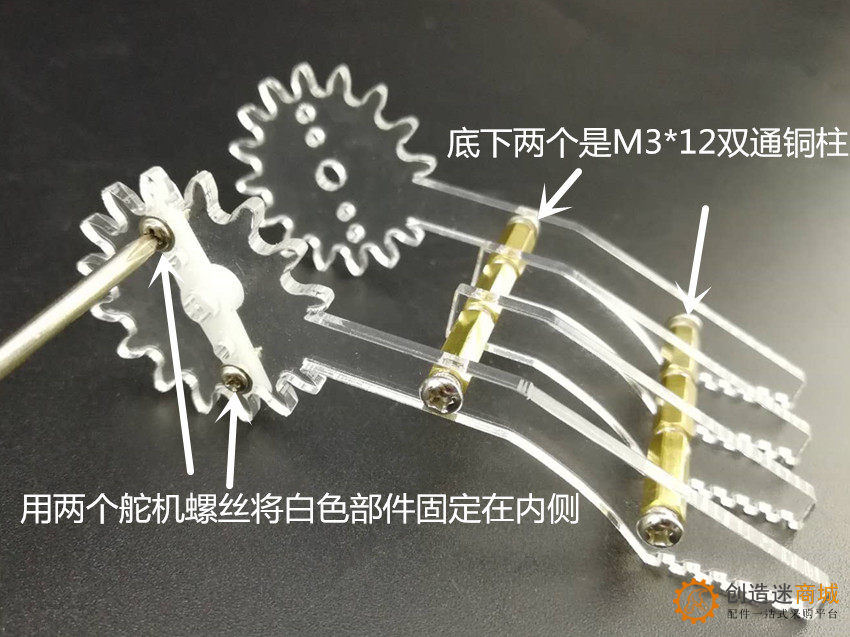

The bottom two is the M3*12 double copper column.

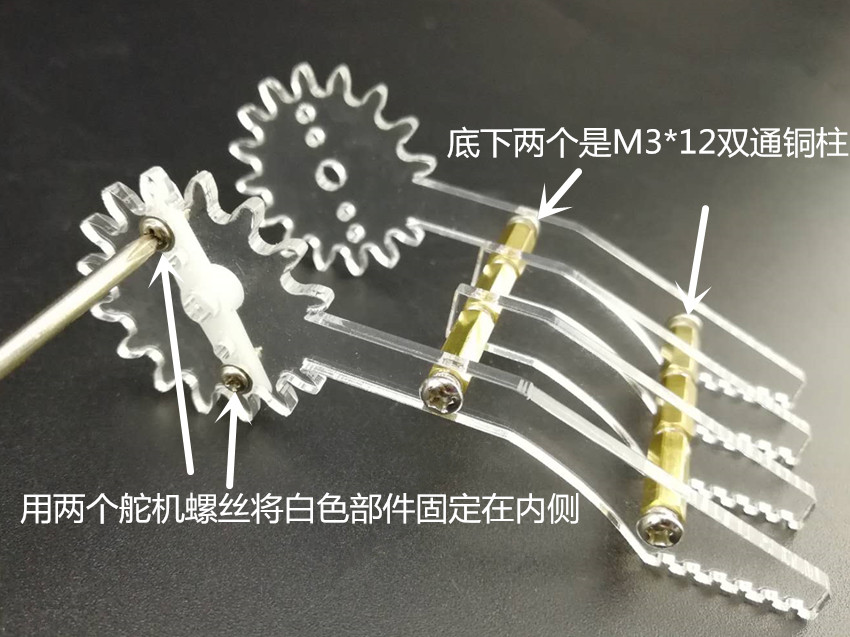

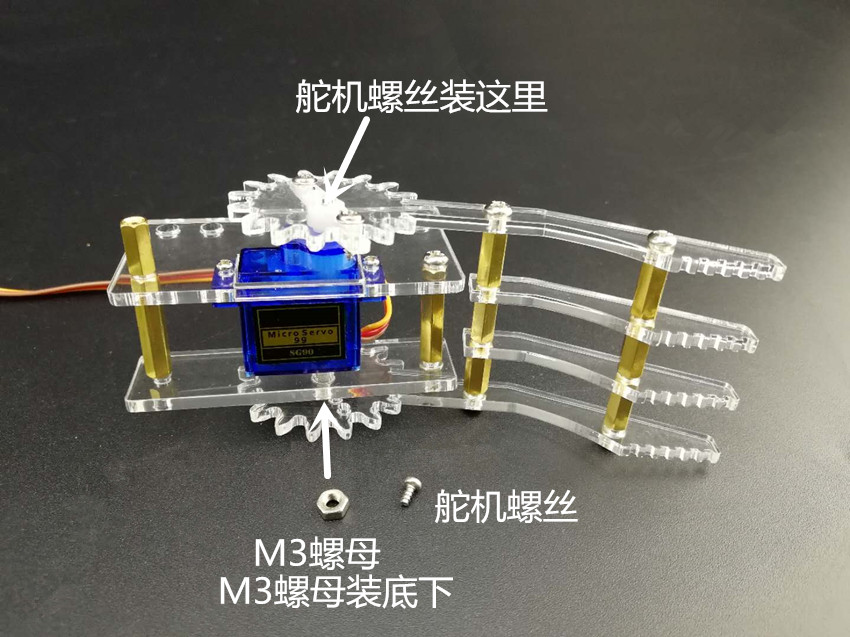

Use two steering screws to fix the white parts in the internal measurement.

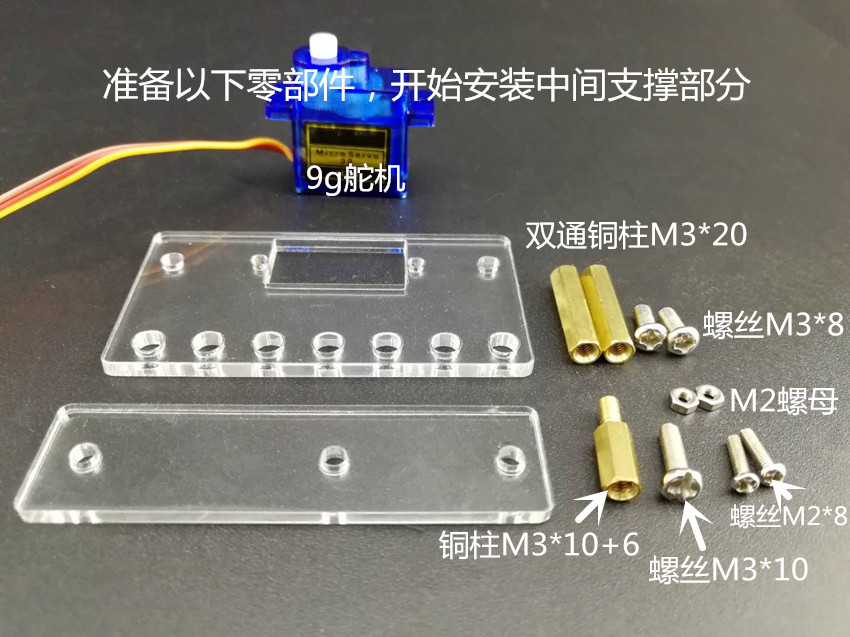

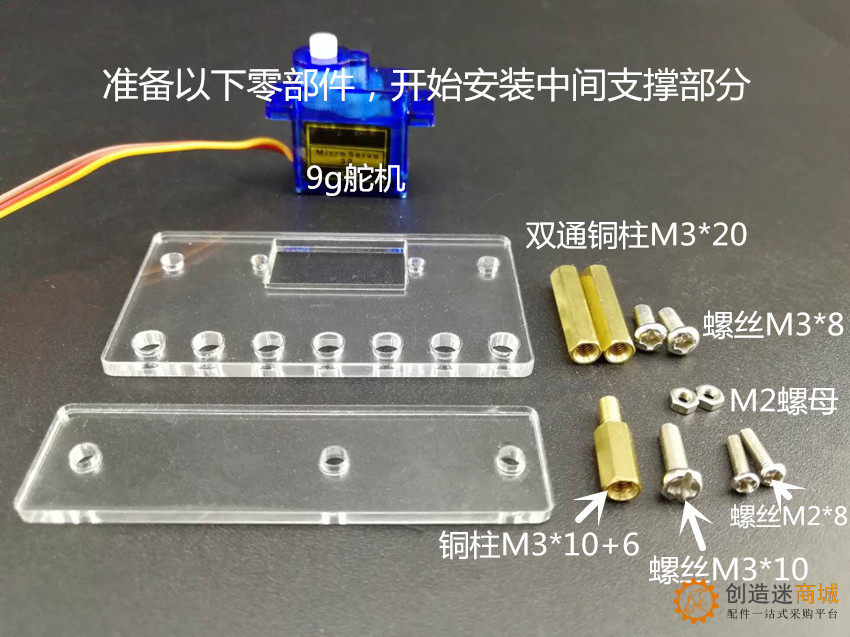

Prepare the parts and start to install the middle support.
双通铜柱M3*20 Double copper column M3*20
螺丝M3*8 Screw M3*8
M2螺母 M2 nut
螺丝M2*8 Screw M2*8
螺丝M3*10 Screw M3*10
铜柱M3*10+6 Copper column M3*10+6

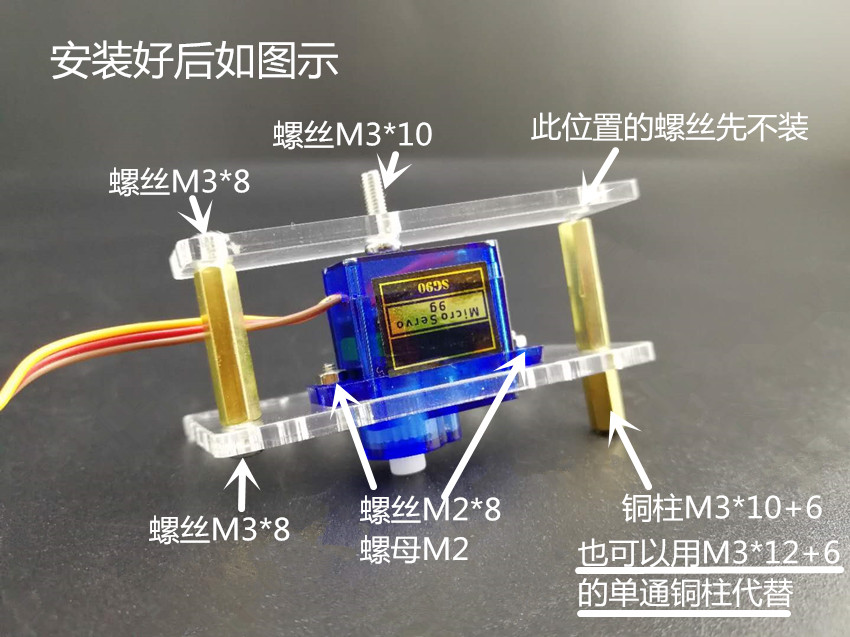

After the installation is shown, as shown in the picture

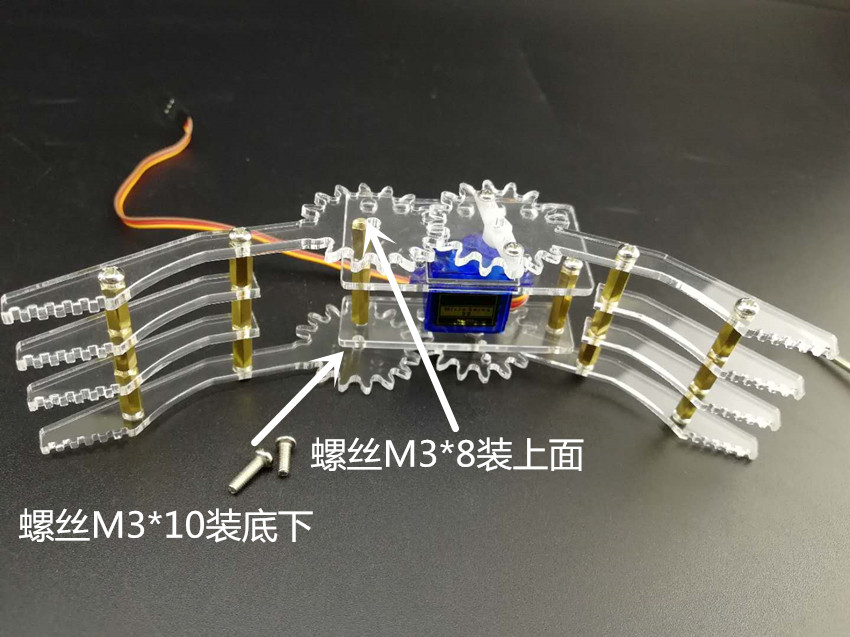

螺丝M3*8 Screw M3*8
螺丝M3*10 Screw M3*10
此位置的螺丝先不装
The screws in this position are not installed at first
螺丝M3*8 Screw M3*8
螺丝M2*8 Screw M2*8
螺母M2 nut M2
铜柱M3*10+6 Copper column M3*10+6

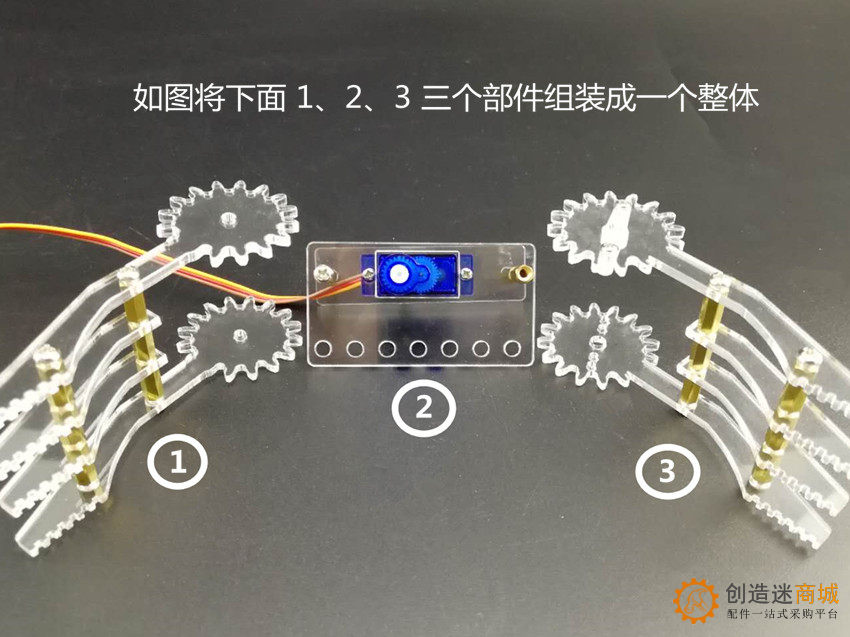

Underline: you can also use M3*12+6’s single copper column instead.
