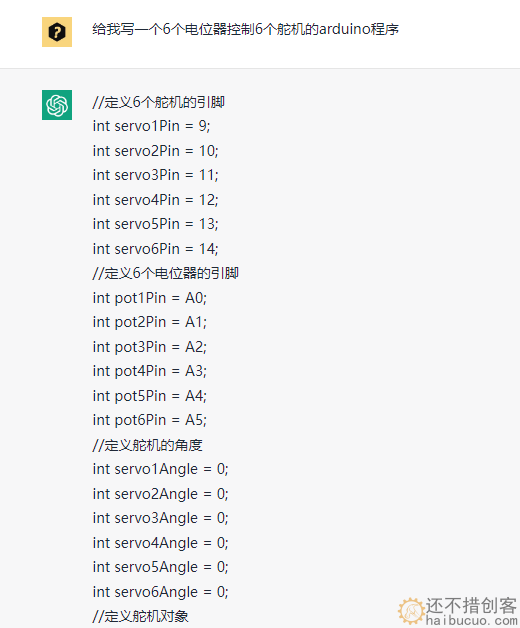

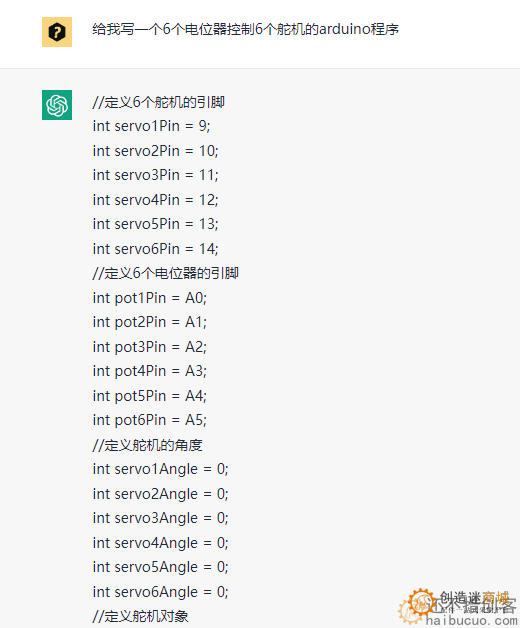

给我写一个6个电位器控制6个舵机的arduino程序 chatgpt
//定义6个舵机的引脚
int servo1Pin = 9;
int servo2Pin = 10;
int servo3Pin = 11;
int servo4Pin = 12;
int servo5Pin = 13;
int servo6Pin = 14;
//定义6个电位器的引脚
int pot1Pin = A0;
int pot2Pin = A1;
int pot3Pin = A2;
int pot4Pin = A3;
int pot5Pin = A4;
int pot6Pin = A5;
//定义舵机的角度
int servo1Angle = 0;
int servo2Angle = 0;
int servo3Angle = 0;
int servo4Angle = 0;
int servo5Angle = 0;
int servo6Angle = 0;
//定义舵机对象
Servo servo1;
Servo servo2;
Servo servo3;
Servo servo4;
Servo servo5;
Servo servo6;
void setup() {
//将舵机的引脚连接到arduino
servo1.attach(servo1Pin);
servo2.attach(servo2Pin);
servo3.attach(servo3Pin);
servo4.attach(servo4Pin);
servo5.attach(servo5Pin);
servo6.attach(servo6Pin);
}
void loop() {
//读取电位器的值
int pot1Value = analogRead(pot1Pin);
int pot2Value = analogRead(pot2Pin);
int pot3Value = analogRead(pot3Pin);
int pot4Value = analogRead(pot4Pin);
int pot5Value = analogRead(pot5Pin);
int pot6Value = analogRead(pot6Pin);
//将电位器的值映射到舵机的角度
servo1Angle = map(pot1Value, 0, 1023, 0, 180);
servo2Angle = map(pot2Value, 0, 1023, 0, 180);
servo3Angle = map(pot3Value, 0, 1023, 0, 180);
servo4Angle = map(pot4Value, 0, 1023, 0, 180);
servo5Angle = map(pot5Value, 0, 1023, 0, 180);
servo6Angle = map(pot6Value, 0, 1023, 0, 180);
//将舵机转到指定的角度
servo1.write(servo1Angle);
servo2.write(servo2Angle);
servo3.write(servo3Angle);
servo4.write(servo4Angle);
servo5.write(servo5Angle);
servo6.write(servo6Angle);
//延时10毫秒
delay(10);
}
