esp32 称重传送带开源项目
#include <LiquidCrystal.h>
#include “HX711.h”
// Ultrasonic Sensor Pins
#define TRIG_PIN 18
#define ECHO_PIN 19
#define MAX_DISTANCE 200 // Maximum distance to detect objects (in cm)
// Stepper Motor Pins
#define MOTOR_PIN_A1 21
#define MOTOR_PIN_A2 22
#define MOTOR_PIN_B1 23
#define MOTOR_PIN_B2 25
// Load Cell Pins
#define LOADCELL_DOUT_PIN 4
#define LOADCELL_SCK_PIN 5
// LED Pins
#define RED_LED_PIN 15
#define GREEN_LED_PIN 14
// Load Cell Threshold
#define WEIGHT_THRESHOLD 25.0 // 25 kg
HX711 scale;
// Stepper Motor Steps
int stepNumber = 0;
// LCD Display Pins
LiquidCrystal lcd(22, 21, 19, 18, 5, 17); // Define pins for LCD (RS, E, D4, D5, D6, D7)
void setup() {
// Initialize Serial Monitor
Serial.begin(115200);
// Initialize LCD
lcd.begin(16, 2); // Specify the number of columns and rows
lcd.setCursor(0, 0);
lcd.print(“Conveyor Status:”);
// Set up Ultrasonic Sensor Pins
pinMode(TRIG_PIN, OUTPUT);
pinMode(ECHO_PIN, INPUT);
// Set up Stepper Motor Pins
pinMode(MOTOR_PIN_A1, OUTPUT);
pinMode(MOTOR_PIN_A2, OUTPUT);
pinMode(MOTOR_PIN_B1, OUTPUT);
pinMode(MOTOR_PIN_B2, OUTPUT);
// Initialize Load Cell
scale.begin(LOADCELL_DOUT_PIN, LOADCELL_SCK_PIN);
scale.set_scale(); // You should calibrate your scale using a known weight and then set the scale
// Set up LED Pins
pinMode(RED_LED_PIN, OUTPUT);
pinMode(GREEN_LED_PIN, OUTPUT);
// Initially stop the motor
stopMotor();
lcd.setCursor(0, 1);
lcd.print(“Motor Stops “); // Display “Motor Stops”
}
void loop() {
// Measure distance using the ultrasonic sensor
long distance = measureDistance();
// Measure weight using the load cell
float weight = scale.get_units(10); // Get the average of 10 readings
// Control the conveyor belt based on distance
if (distance > 0 && distance < MAX_DISTANCE) {
Serial.println(“Object detected! Starting conveyor belt.”);
stepMotor(); // Step the motor
lcd.setCursor(0, 1);
lcd.print(“Motor Starts “); // Display “Motor Starts”
} else {
Serial.println(“No object detected. Stopping conveyor belt.”);
stopMotor(); // Stop the motor if no object is detected
lcd.setCursor(0, 1);
lcd.print(“Motor Stops “); // Display “Motor Stops”
}
// Control LEDs based on weight
if (weight > WEIGHT_THRESHOLD) {
digitalWrite(RED_LED_PIN, HIGH);
digitalWrite(GREEN_LED_PIN, LOW);
Serial.println(“Weight above threshold, Red LED ON, Green LED OFF”);
} else {
digitalWrite(RED_LED_PIN, LOW);
digitalWrite(GREEN_LED_PIN, HIGH);
Serial.println(“Weight below threshold, Red LED OFF, Green LED ON”);
}
// Print weight to Serial Monitor
Serial.print(“Weight: “);
Serial.print(weight);
Serial.println(” kg”);
delay(100); // Delay for stability
}
void stepMotor() {
switch (stepNumber) {
case 0:
digitalWrite(MOTOR_PIN_A1, HIGH);
digitalWrite(MOTOR_PIN_A2, LOW);
digitalWrite(MOTOR_PIN_B1, HIGH);
digitalWrite(MOTOR_PIN_B2, LOW);
break;
case 1:
digitalWrite(MOTOR_PIN_A1, LOW);
digitalWrite(MOTOR_PIN_A2, HIGH);
digitalWrite(MOTOR_PIN_B1, HIGH);
digitalWrite(MOTOR_PIN_B2, LOW);
break;
case 2:
digitalWrite(MOTOR_PIN_A1, LOW);
digitalWrite(MOTOR_PIN_A2, HIGH);
digitalWrite(MOTOR_PIN_B1, LOW);
digitalWrite(MOTOR_PIN_B2, HIGH);
break;
case 3:
digitalWrite(MOTOR_PIN_A1, HIGH);
digitalWrite(MOTOR_PIN_A2, LOW);
digitalWrite(MOTOR_PIN_B1, LOW);
digitalWrite(MOTOR_PIN_B2, HIGH);
break;
}
stepNumber++;
if (stepNumber > 3) {
stepNumber = 0;
}
delay(10); // Adjust delay for motor speed
}
void stopMotor() {
digitalWrite(MOTOR_PIN_A1, LOW);
digitalWrite(MOTOR_PIN_A2, LOW);
digitalWrite(MOTOR_PIN_B1, LOW);
digitalWrite(MOTOR_PIN_B2, LOW);
}
long measureDistance() {
// Send a 10us pulse to trigger the ultrasonic sensor
digitalWrite(TRIG_PIN, LOW);
delayMicroseconds(2);
digitalWrite(TRIG_PIN, HIGH);
delayMicroseconds(10);
digitalWrite(TRIG_PIN, LOW);
// Read the echo pin, returns the sound wave travel time in microseconds
long duration = pulseIn(ECHO_PIN, HIGH);
// Calculate the distance (speed of sound is 34300 cm/s)
long distance = duration * 0.034 / 2;
return distance;
}

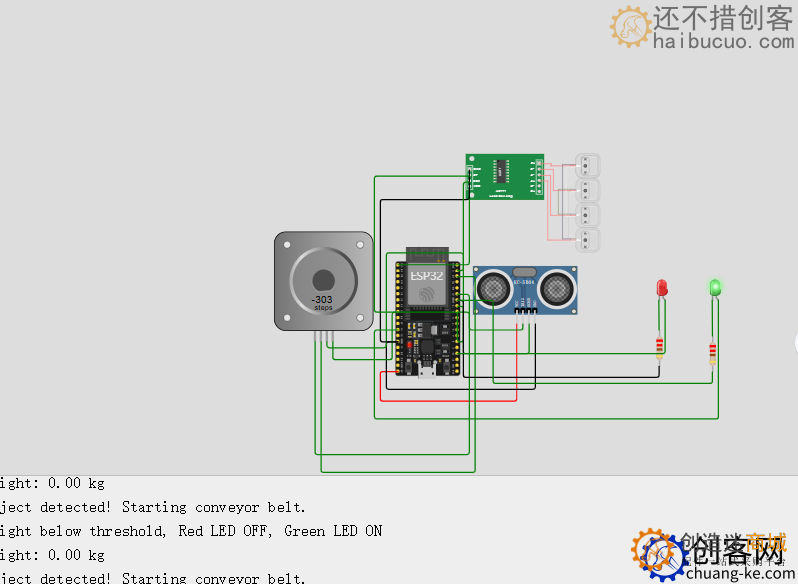

项目地址：https://wokwi.com/projects/405170590102260737
